ACQ132CPI: Improve SNR, eliminate Aliasing with Oversampling + FIR filter

ACQ132CPCI is ideally suited for oversampling applications

  • Fit with fast ADC devices, typical input sample rate 32MHz
  • Multiple FPGAworld devices, 4 channels per FPGA means large DSP resource per channel.

Example Requirement

User requires data with bandwidth 1.0MHz, but needs to eliminate significant noise in the region 1..10MHz.
For practical reasons, the minimum possible output data rate is requested (2MSPS), that makes it essential to eliminate higher frequency noise that would otherwise alias.

It's not feasible to achieve this using traditional analog AAF devices, since a very high order analog filter would be required, and this would likely bring problems with phase matching and inband distortion. However, a combination of moderate analog AAF, oversampling, and high-order decimating digital FIR filter can be deployed to meet the requirement.

Designed Solution

  • ACQ132CPCI-32-32F : 32 channel simultaneous digitzer, fitted with high speed ADC
  • ISR : 32MSPS
  • OSR : 2MSPS
  • AAF : 4 pole analog LP filter, passband 2.5MHz

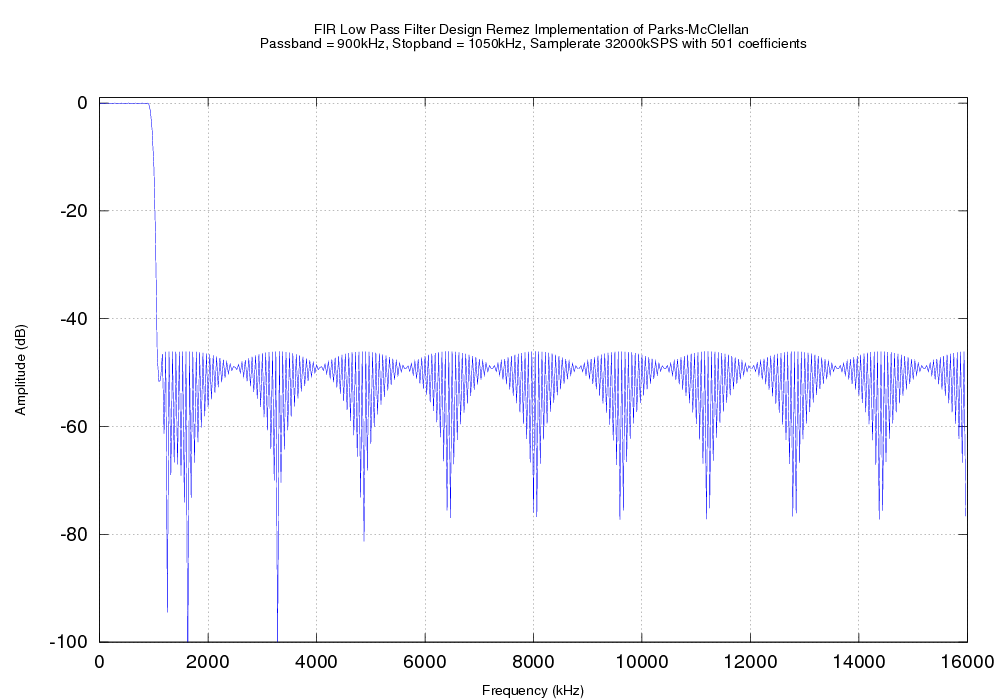

  • FIR : 501 taps, fixed /16 decimation, passband 900kHz, stopband 1050kHz. Diagram shows filter design.
  • The FPGAworld logic implements a generic 501 tap FIR filter on each channel, many other filter characteristics are possible, please contact D‑TACQ with your requirement. Or try it out for yourself using this Gnu-Octave script to generate the coefficients and plot the characteristic.

Download the precompiled set of FIR filters

Computed FIR response

Computed FIR response

Results

Comparing data with and without filter shows that significant processing gain is achieved, and aliased harmonics are eliminated.

Signal Without Filter With Filter
100kHz
10V

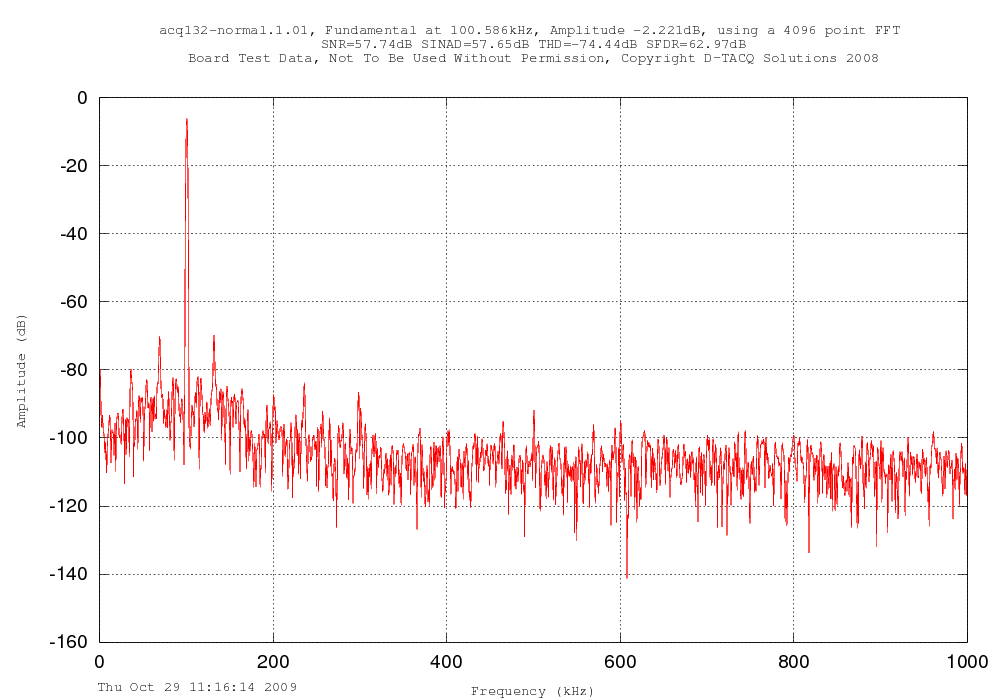

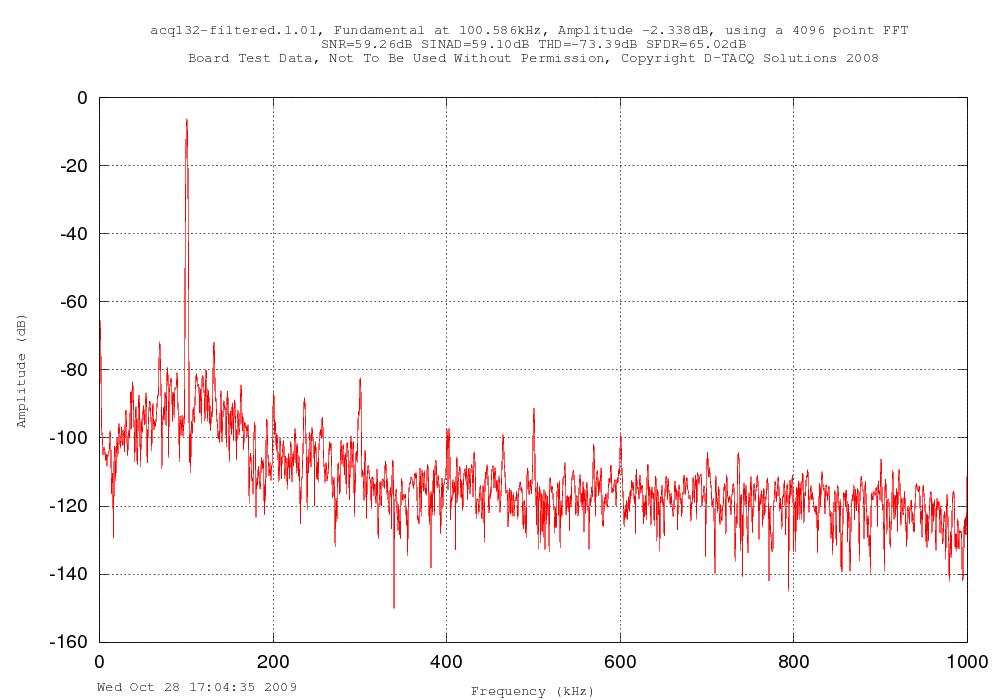

100kHz, 10V, normal/no FIR 100kHz, 10V, filtered
100kHz
100mV

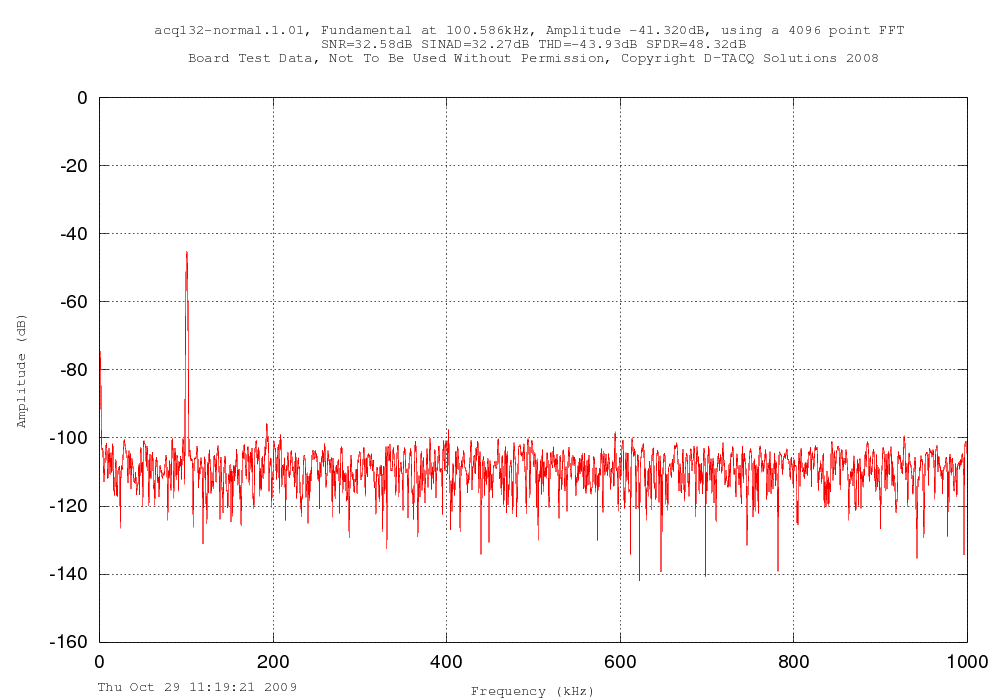

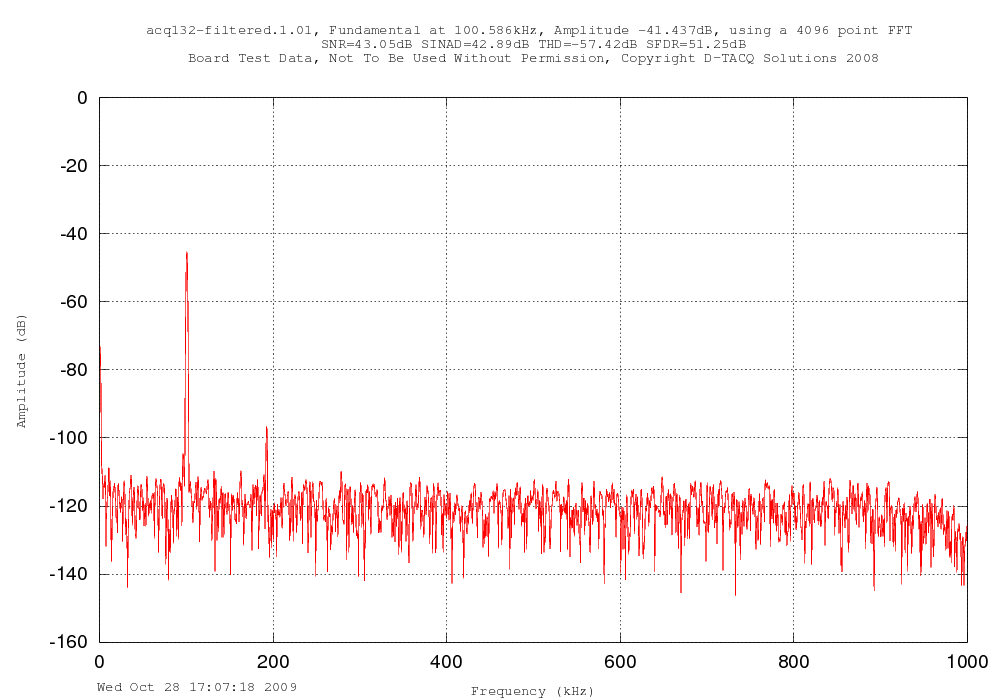

100kHz, 100mV, normal/no FIR 100kHz, 100mV, filtered

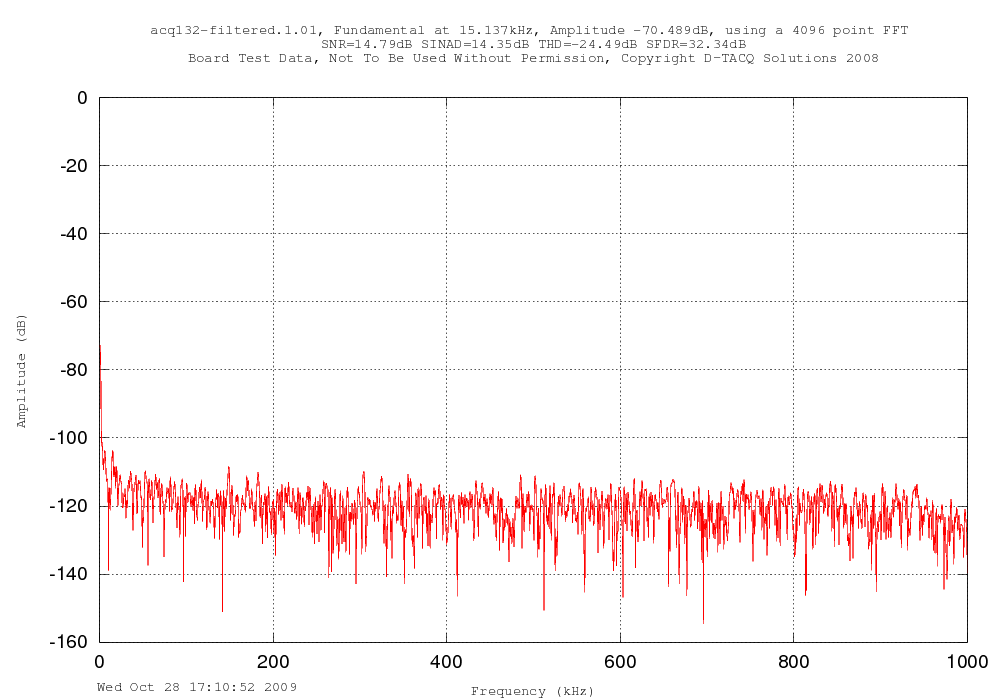

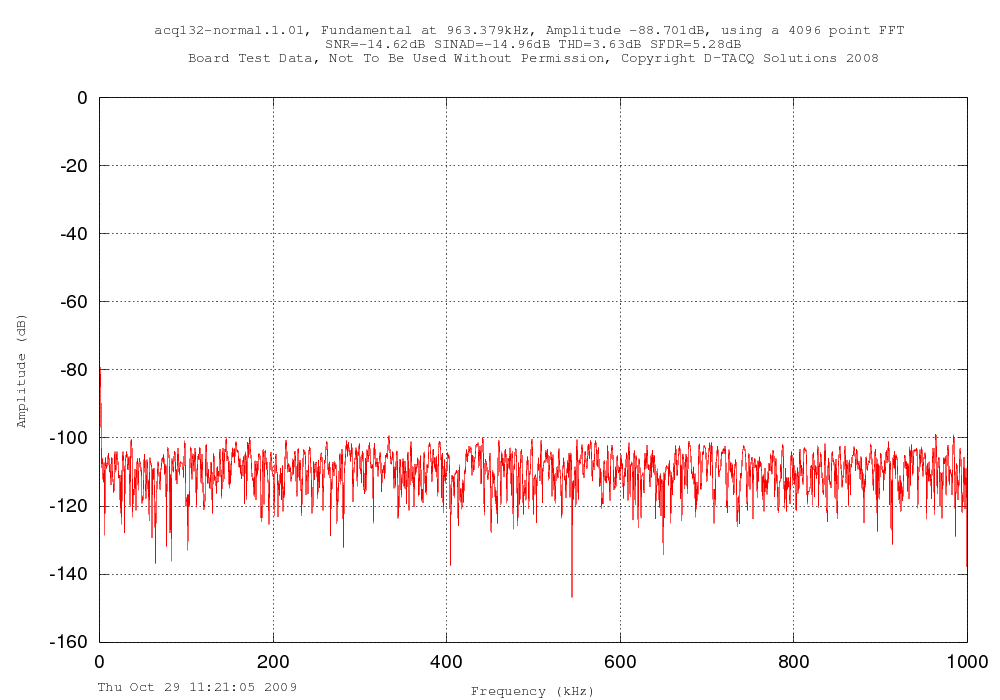

no signal no signal, normal/no FIR no signal, filtered
600kHz
Square
Wave

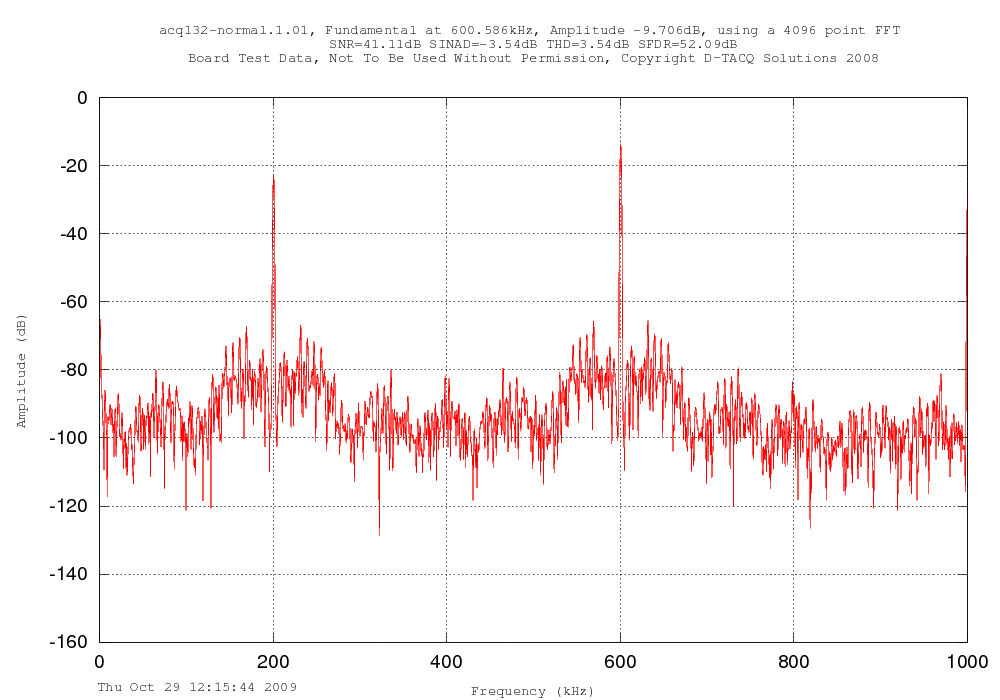

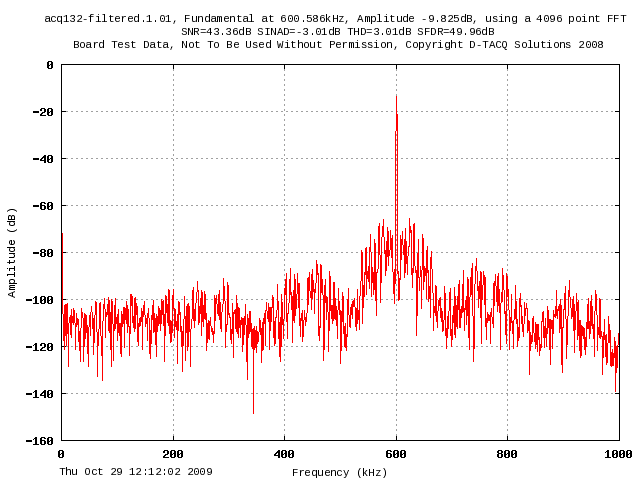

600kHz, square, normal 600kHz, square, filtered

The unfiltered square wave input shows the 3rd harmonic (1800kHz, reflected at 200kHz) as expected; in the FIR filtered case, the 3rd harmonic is in the stop band and is completely eliminated.
